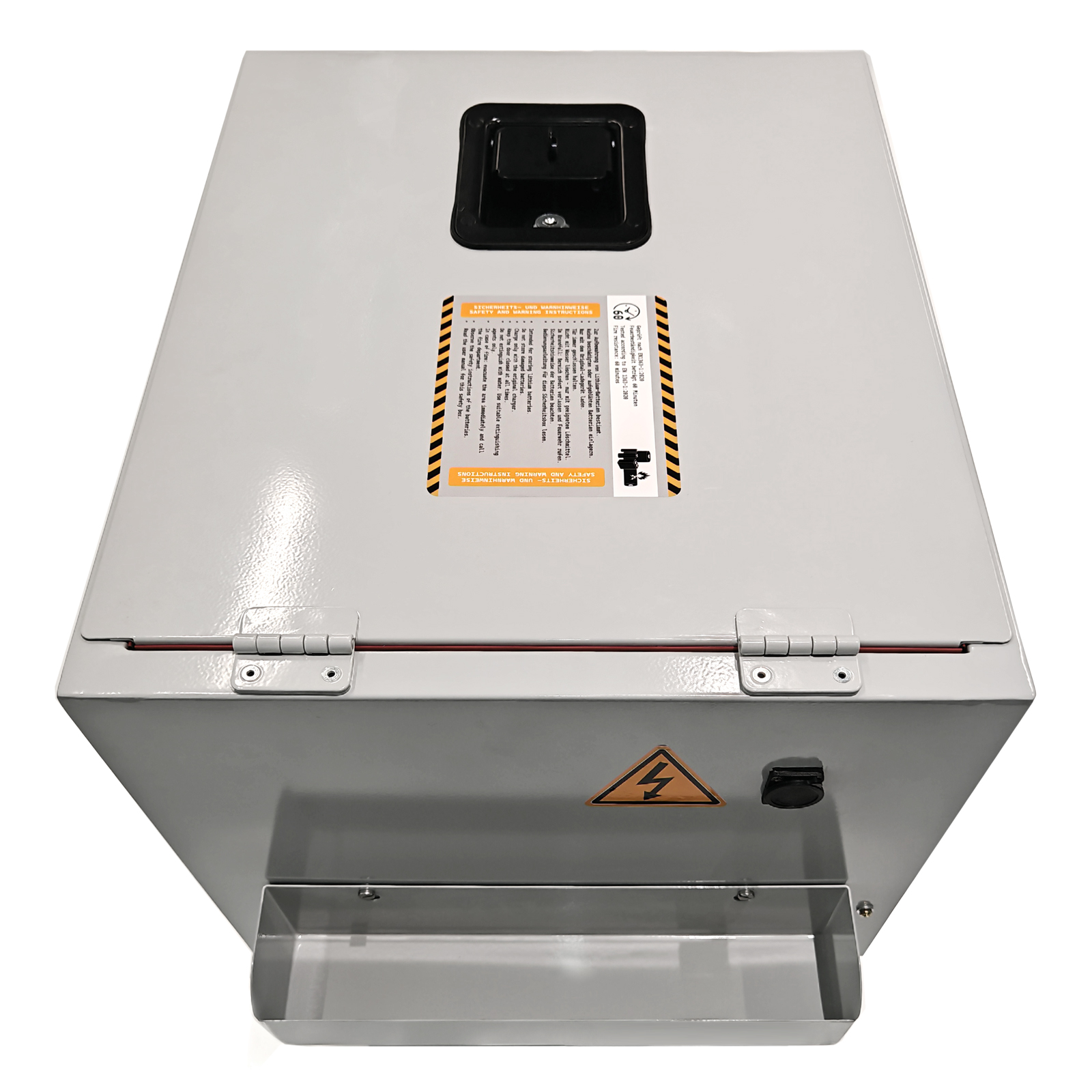

Hermax HX-SB1 Safety Box/Charging Station + Tronje Aerosol Fire Extinguisher

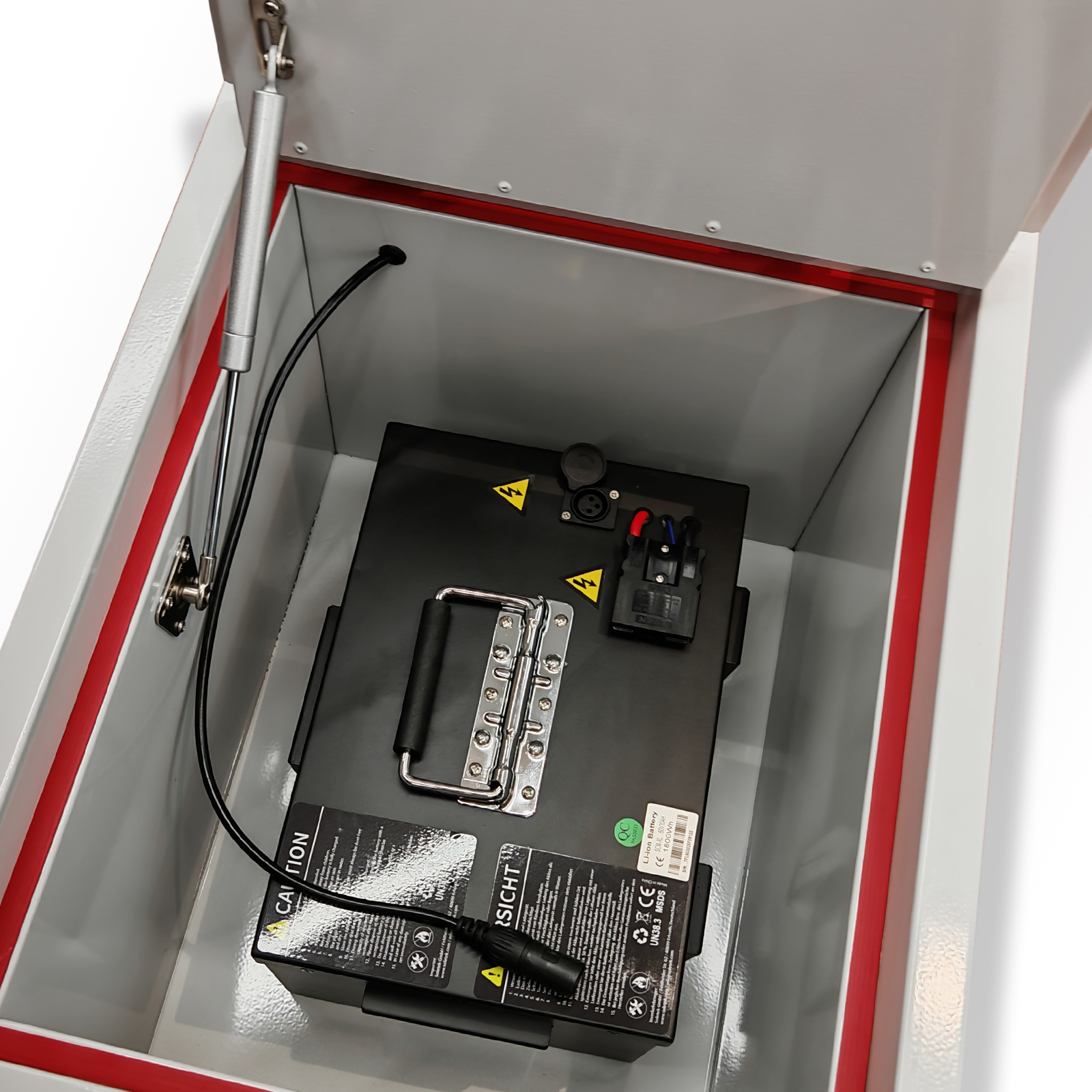

This safety box was specifically designed for the safe storage and charging of lithium batteries—ideal for electric vehicles such as e-scooters, electric scooters, mobility scooters, pedelecs, and e-bikes. It is also suitable for numerous other lithium batteries, provided their size and capacity are compatible.

The robust steel construction with 40 mm ceramic fiber insulation provides reliable protection against heat and fire in an emergency. Tested according to EN 1363-1:2020, it offers 60 minutes of fire resistance. The integrated charging port allows for safe charging while the box is closed, without having to remove the batteries from the protective environment.

In addition, the safety box is equipped with a condensed aerosol fire extinguisher. This modern extinguishing system was developed specifically for enclosed spaces and activates automatically in the event of a fire when high temperatures are detected. Within seconds, the extinguishing aerosol spreads evenly throughout the interior of the box, helping to contain emerging fires at an early stage and reduce further spread. The pressureless system uses a non-toxic and non-corrosive extinguishing agent and offers a maintenance-free service life of up to 10 years.

For maximum flexibility, the box is equipped with four heavy-duty casters, two of which are lockable. This allows it to be moved easily and secured stably when needed.

Whether for vehicle and bicycle batteries, model-making, drone, or power tool batteries—the safety box creates a reliable charging and storage environment for both private users and commercial applications.

• Safe Charging & Storage – Fire protection and charging function in one system
• Additional protection through an integrated aerosol fire extinguisher for automatic fire suppression inside the unit
• Wide compatibility – Suitable for many common lithium batteries used in e-mobility (e.g., e-scooters, electric scooters, e-bikes, mobility scooters)
• Tested fire resistance – 60 minutes according to EN 1363-1:2020
• Rapid extinguishing effect – thermal activation of the aerosol extinguishing system at approx. 185 °C
• Mobile & stable – four heavy-duty casters, two of which have locking brakes
• Integrated direct charging port – includes connection cable, charging adapter, and grounding
• Space-saving & affordable – ideal solution for private households, workshops, or businesses

Technical specifications:

• External dimensions approx. 520 × 415 × 420 mm
• Internal dimensions approx. 440 × 335 × 274 mm
• Packaging dimensions approx. 570 × 490 × 450 mm
• Material: approx. 1.0 mm steel, interior & exterior
• Caster wheels:
• Number: 4 (2 casters with brakes)
• Material: Heavy-duty casters with rubber tread (floor-friendly, low-noise)
• Diameter: approx. 50 mm (2") / Width: approx. 24 mm
• Mounting: Screwed to base plate, metal housing
• Features: 360° swivel, shock-resistant & low-wear, suitable for smooth floors (e.g., concrete, tile, PVC), secure stance when locked
• Load capacity (total): approx. 140 kg
• Coating: Antistatic powder coating
• Insulation: approx. 40 mm ceramic fiber
• Fire resistance test: EN 1363-1:2020, 60 minutes
• Weight (net / gross): approx. 22 kg / 24 kg
• Current: Charging cable up to max. 5 A
• Cable length: approx. 50 cm (adapter cable)
• Compliance: CE marked
• Material: non-flammable, high-temperature resistant
• Integrated aerosol fire extinguisher with thermal activation
• Activation temperature of extinguishing system: approx. 185 °C ± 10 °C
• Discharge duration of extinguishing agent: approx. 5 seconds
• Extinguishing agent: strontium nitrate & potassium nitrate
• Maintenance-free extinguishing system with a service life of up to 10 years
• Pressureless extinguishing technology for increased safety during storage and operation
